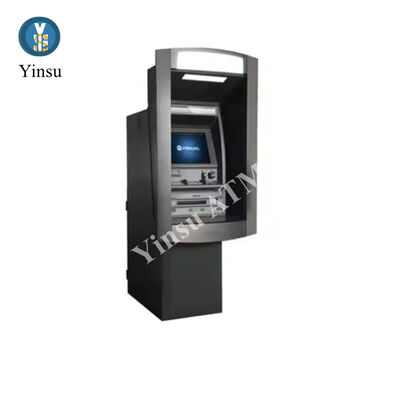

Nautilus Hyosung Monimax 5600T Through The Wall ATM Machine

1. Core Overview

• Model: Monimax 5600T (TTW Cash Dispenser)
• Installation: Through-The-Wall (TTW) / Wall-mounted
• Key Features: Compact footprint, high reliability, EMV compliance, anti-skimming protection

2. Hardware Specifications

Display & Input

• Customer Display: 10.1" / 15" TFT LCD (1024×768, 250cd/m², anti-glare)
• Touchscreen: Resistive touch (10.1") or 15" touch option
• Keypad: PCI-compliant EPP (Encrypting PIN Pad) with DES/3DES/RSA encryption
• Function Keys: 8 physical function keys

Card Reader

• Type: Dip/motorized hybrid reader (magnetic stripe + EMV IC)
• Compliance: EMV Level 1/2, ISO 7816
• Optional: Contactless (NFC) reader, anti-skimming module

Cash Dispensing Unit (CDU10)

• Max Notes per Transaction: 50 notes
• Cassettes: 2 standard (expandable to 4)
• Capacity: 3,000 notes per cassette (max 12,000 total)
• Shutter: Automatic note shutter
• Features: Note-by-note rejection, retract bin, multi-denomination support

Printers

• Receipt Printer: 80mm thermal (graphical, auto paper load)
• Journal Printer: Optional thermal journal printer

Main System

• CPU: Intel Atom Quad-Core N2930 1.83GHz (or equivalent)
• Memory: DDR3L 4GB (up to 8GB)
• Storage: 128GB SSD (SATA)
• OS: Windows 7 Embedded (standard)
• Ports: Gigabit LAN, 8×USB, 4×RS232, Mini PCI-E

Power & Environment

• Input: 100–240V AC, 50/60Hz
• Backup Battery: For safe shutdown/reserve last transaction
• Operating Temp: 0°C ~ 40°C (32°F ~ 104°F)
• Humidity: 25%–86% (non-condensing)
• Weight: ~600 kg

3. Security Features

• Safe: UL 291 Level 1 certified safe
• Locks: Mechanical combination, electronic, KABA Mas cencon lock
• EPP: PCI PED certified, anti-skimming
• Cameras: 1–2 internal security cameras (optional)
• Tamper Detection: Physical/electronic tamper alerts

4. Optional Modules

• Contactless NFC reader
• Barcode scanner (1D/2D)
• Heater for cold environments
• Audio/speaker system
• Biometric fingerprint reader
